SKYFLOOR BL– COMBINED LIGHTWELL COVER AND GLASS FLOOR

Basement rooms are mostly dark. For this reason, windows are installed which provide access to daylight through light shafts, while at the same time protecting these shafts against the soil pressure. The SKYFLOOR BL ensures that the maximum amount of light is let in, even to basement floors. At the same time, the surface remains accessible: garden and traffic access are not restricted.

Often, neither the amount of incoming light nor the appearance of the conventional light shaft are satisfactory due to the very bulky steel grid. SKYFLOOR BL provides an ideal solution made of glass and shaft covers. The existing grate is replaced by a walk-on glass cover framed in stainless steel, which directs as much incoming daylight as possible to the basement floor. In this way, incoming daylight can be directed to the basement floor without barriers with maximum light yield. By means of a ventilation track extending along the wall of the house, the shaft as well as the adjacent cellar space remain ventilated.

As well as maximized use of incoming daylight, you will also have a high quality, clean-lined feature, which retains the full use of terraces, garden and circulation areas.

  • Load-bearing or continually walked on
  • Ventilated for air circulation
  • Various wall connections
  • Fast and easy to install
  • No sills - completely flush to the surrounding surface
  • Custom shapes, colour and sizes
  • Can be integrated into existing and new buildings
  • Durable system
  • Low maintenance

FORM

Please tell us the dimensions of your light shaft. Whether within standard sizes or individually – the SKYFLOOR BL is variable in shape and size.

THE RECTANGLE

The size of the light well cover can either be oriented by the outer edge of the existing grate or by the outer dimensions of the concrete shaft. Various standard dimension are available, with shaft widths up to a maximum of 2000 mm are available. These can be found under SIZES AND PRICES

THE INDIVIDUAL

Are the dimensions of your shaft outside the specified dimensions, or are you faced with other specifications in your project? Our custom made special solutions for walk-on lightwell covers leave nothing to be desired with regard to shape, size load bearing capacity and connection possibilities.

ADD ONS

Are you looking for a walk-on light well cover that meets all your requirements? Various options can be easily integrated into standard versions. Whether limited transparency, a wide range of materials or slip resistant coatings, we would be happy for you to provide an optimum result.

ANTI-SLIP POINTS

Slip-resistant glass surface fine dot format for good slip resistance (R10) and optimum light transmission

SLIP RESISTANCE FULL SURFACE

Full-surface anti-slip glass surface for best slip resistance (R13). Prevents the view inside and the view outside.

SLIP RESISTANCE STRIPES

Slip-resistant glass surface in strip format (3mm/50%) for best slip resistance (R10).

WALKABLE

Glazing walkable according to DIN 18008-5 (D), SIA (CH) and ÖNORM B 3710 (AT) up to a maximum useful load of 5kN/sqm

LIMITED-WATER-FLOW

Design of the entire stainless steel frame as a limited-water-flow system incl. connection lug for on-site sealing. Profile height min. 150mm.

PRIVACY GLAZING

Obscures the view both inwards and outwards

CERAMIC STRIP

Circumferential ceramic strip to cover the support strip. Colour: black or individual colour as specified by the customer

Perforated or linear grate

Ventilated by means of integrated perforated grating for air circulation in the shaft. Alternatively, it can be supplemented with a stainless steel linear grate.

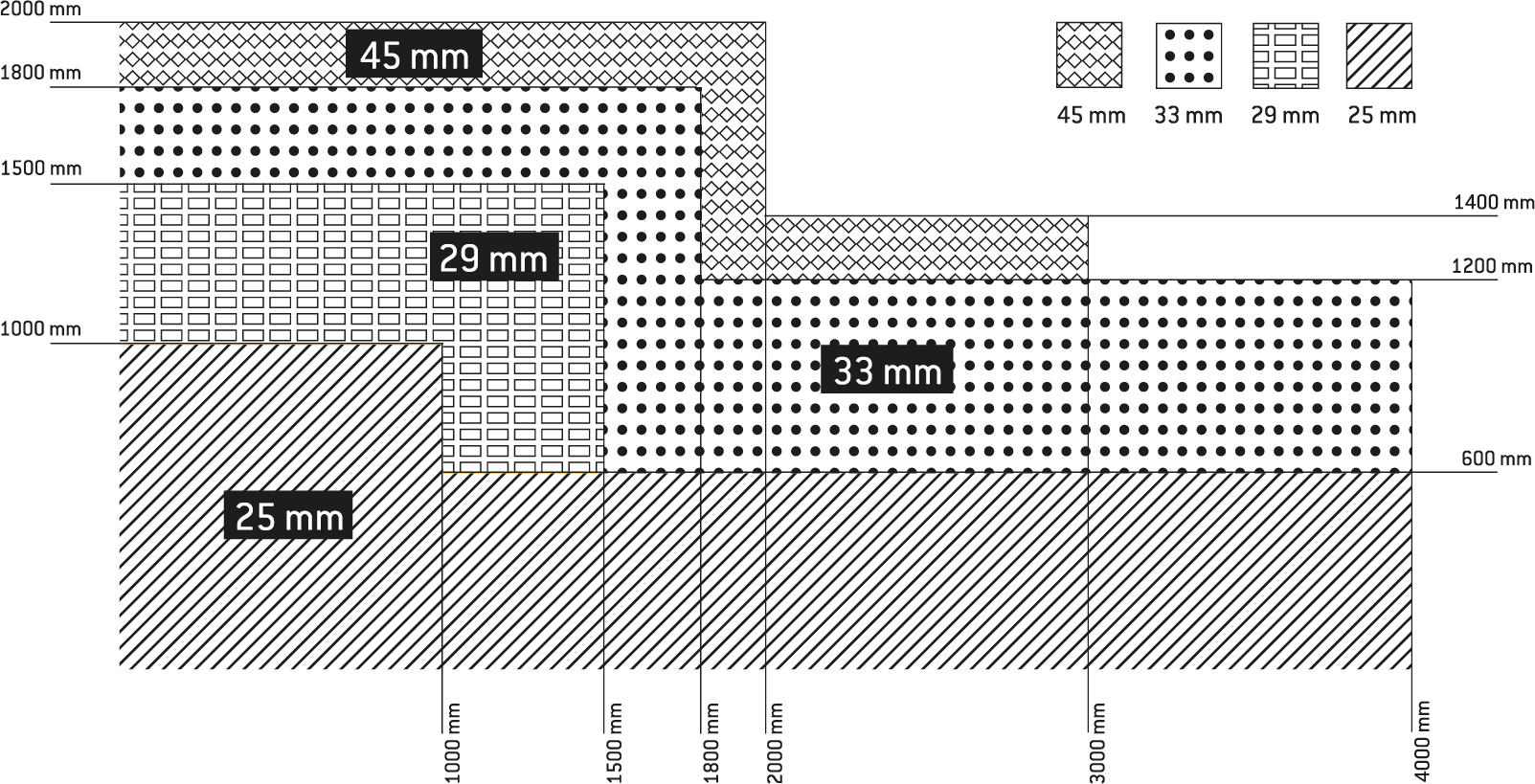

Examples of Sizes Skyfloor BL

The size of the SKYFLOOR BL is variable and is based on various parameters of the planned or existing shaft. Whether for new buildings or for fitting into existing buildings – the SKYFLOOR BL from Taghell can be manufactured according to the required dimensions within the range of minimum to maximum sizes listed.

High quality custom made, walk-on light well covers made of glass. The basic version of the light well covers can be selected according to shape and size. Depending on the requirements, the options described under “Add-on” can be added.

MAXIMUM SIZE PER GLASS

300CM X 120CM

Larger dimensions are possible by dividing the glass as desired

CONFIGURATOR – SKYFLOOR BL

If you need a size outside these parameters, contact us to configure your custom SKYFLOOR BL.

TECHNICAL DATA

Technical Data SKYFLOOR BL

Download PDF

INSTALLATION

The installation of our Skyfloor is simple and time-saving. It can be carried out by your roofing specialist of choice or by installation specialists from our Taghell team. We are pleased to support external fitters for successful installation of the walkable skylights. You will find notes and recommendations in our installation instructions.
Please contact us for detailed assembly instructions.

Made in Germany – delivered and installed in Europe. Taghell plans, supplies and installs walkable skylights and floor glazing in a wide range of European countries.
